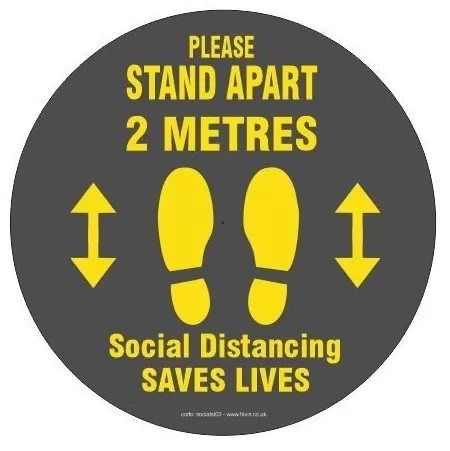

Social Distancing Floor Sticker Round

MetaGuard ‘FloorArt’ vinyl
 100 micron matt embossed film gives a durable protection to graphics, with easy to clean finish. This versatile product can also be applied to wall
graphics, for a one product solution. MetaGuard FloorArt has an anti-slip finish tested in accordance with BS 7676-2:2002 certification (Slider
96) and UK Slip Resistance Guidelines. The recommended matched media is Metamark MD3-B or MDP-H High Tack. Suitable for use with
Solvent, Eco Solvent and Latex prints.
suitable for indoors and long life outdoors Applying outdoors on anything other than completely smooth surfaces is not advised for any length of time, do not apply to rough or pitted or loose surfaces as water will seep under sit in crevices and then and de peel the transfer from the floor.

Application should be done in dry dust free conditions, by peeling away the backing and slowly rolling and smoothing the transfer to the surface to avoid air bubbles. Repositioning is allowed, and a slight spritz of soapy water before application will help removal and refit in the first 2 or 3 minutes. See more detailed instructions here.
Material Handling
 Ensure that the material has reached room temperature and a relative humidity of 50% before printing.
 Do not handle the face film directly and ensure it is free from dust and static.
Overlaminating
 The recommended matched print medias are Metamark MD3-B or MDP-H High Tack.
 Suitable for use on Solvent, Eco Solvent inkjet and Latex prints on Metamark print media. Not suitable for UV prints.
 Allow the inks to cure before overlaminating, usually 24-48 hours. Failure to do so can cause delamination, tunnelling and shrinkage.
 Apply around 30C on the top roller to prevent silvering of the adhesive.
 The user should determine suitability of the overlaminate to the print media
Application and Care of Floor Graphics
 Apply floor graphics using a dry application method, to smooth, flat, sealed surfaces only. Due to the variability of paints and finishes it is
recommended to test a sample for adhesion.
 Ensure the floor surface is clean from contamination, dust free, and any painted surface is sound.
 No liability is given for damage to painted surfaces as the bond between the paint and the wall is out of our control.
 Make sure edges are applied well. Allow 24 hours to cure before being exposure to moisture or cleaning.
 Avoid exposure to heavy traffic. If edges of graphics begin lifting, replace graphics immediately to avoid the risk of tripping hazard.
 The product meets slip resistance standards when wet however slip resistance is reduced when wet or dirty.
Face Film
Face Film Monomeric calendered PVC
Gauge 100 micron nominal
Tensile Strength 65N/25mm MD / 57N/25mm TD nom
Adhesive
Type Permanent clear solvent-based acrylic
Weight 20gsm nominal
Adhesion to glass 20 mins 14N/25mm nominal
Adhesion to glass 24 hour 18N/25mm nominal
Perceived tack High
Application temperature +10C to +60C
Service temperature -30C to +110C
Finishes
Finishes Available MG-F MetaGuard ‘FloorArt’
Release Liner
Print ‘Metamark Digital Vinyl’ grey print
Weight 140 gsm nominal
Type Layflat kraft with PE coating
Roll Presentation
Roll sizes and net weights 760mm x 50m 12kg
1370mm x 50m 22kg
1520mm x 50m 24kg
Durability
Shelf Life 2 years
External weathering Indoor use 1 year under normal floor use.
5 years for use not on floors (walls).
Fire Rating Self Extinguishing
Certification BS 7676-2:2002 certification (Slider 96).


Regulations REACH compliant
Warranty: Metamark (UK) Limited warrants to its customers that graphics produced using Metamark Digital Media will remain in good condition without
excessive fading or colour degradation for the specified life time of the ink used, when correctly stored, printed and applied in accordance with procedures
outlined in the technical literature. If within the specified years of normal use Metamark DigitalVinyl becomes ineffective for its intended use, then Metamark will
provide sufficient material to produce a new replacement marking, and will at its own discretion, contribute an allowance in additional material towards the costs
involved in replacing the graphics. In all cases, the converter is held fully responsible for storing, processing and applying the unconverted materials in
accordance with Metamark’s technical specifications. Metamark (UK) Limited will not be liable for any indirect or consequential loss or damage, and will not
provide any allowance against improper usage, application accident, negligence, chemical damage or improper repair. Please Note: The above data is given in
good faith to provide an indication of the performance of the product. Purchasers should consider the suitability of each product for its intended use and the
purchaser assumes all risks in connection with such use. Seller shall not be liable for damages in excess of the purchase price of the product nor for incidental
nor consequential loss.

Applying outdoors on anything other than completely smooth surfaces is not advised for any length of time, do not apply to rough or pitted or loose surfaces as water will seep under sit in crevices and then and de peel the transfer from the floor.

Grafiprint SOL is a soft wear-resistant cadmium free monomeric calendered PVC film with a special antiskid coating, provided with a pressure-sensitive permanent acrylic glue. The glue is protected by a high-quality silicone paper. This seamless R12 rated anti slip indoor and outdoor use laminate has especially been created for protecting digital prints that need to be applied on the floor.
Suitable for wet and dry use , short term use of up to 2 months outside dependent on application and amount of traffic.
Applying outdoors is not advised for any length of time, do not apply to rough or pitted or loose surfaces as water will seep under sit in crevices and then and de peel the transfer from the floor. See more detailed instructions here.

Film : 125 micron thick wear-resistant monomeric calendered vinyl film, provided with a special antiskid coating. The film shows an excellent resistance against chemical products, humidity, and dirt Glue : solvent-based pressure-sensitive permanent acrylic glue. This glue does not have an aggressive reaction on the printout Backing paper : siliconised clay-coated paper of 120 gr/m²

Application The Grafiprint floor graphics laminate, reference SOL, was especially designed for prints that need to be applied on the floor. Tests in accordance with British Standard 7976 indicate a low slip risk in dry conditions. The floor graphic laminate is meant for indoor use. In case the laminate is used outdoors, the antiskid characteristics can not be guaranteed due to wet conditions (e.g. when it rains). Please also be careful with indoor floor graphics that are wet. The Grafiprint floor graphics laminate, reference SOL, can also be used for traditional vertical applications outdoors (not on the floor). In that case, the expected life span amounts to 1 to 2 years. When used indoors, the expected life span amounts to several years.
